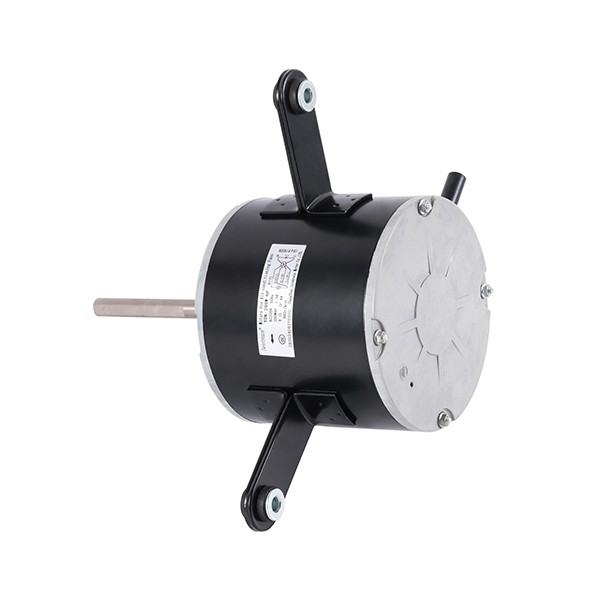

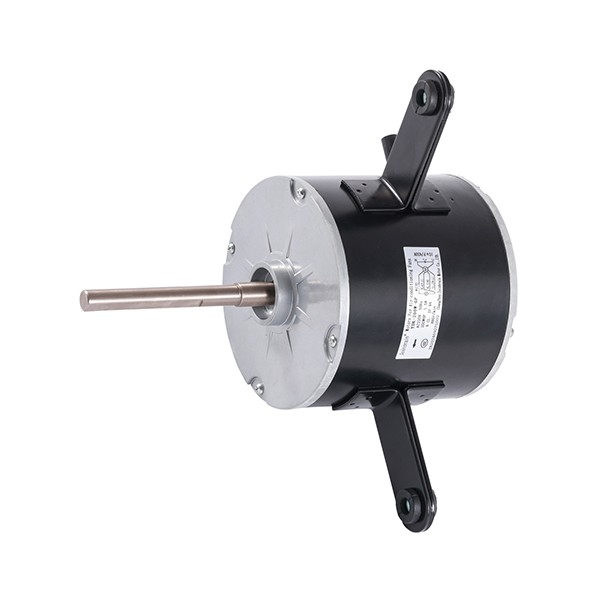

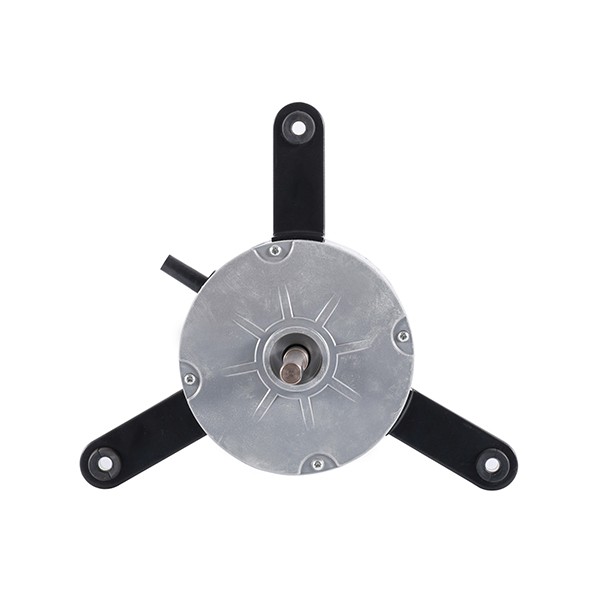

This series of motors are suitable for centrifugal fans and similar uses.
Applications
This series of motors are suitable for centrifugal fans and similar uses.
Features
● Output power 70W-900W, available according to customer requirements;
● Imported or domestic brands of low-noise, high-quality rolling bearings are used, the motor is sprayed with surface treatment and composed of aluminum alloy end covers, and the stator and rotor cores are made of high-quality cold-rolled silicon steel sheets;
● The motor has high efficiency, low temperature rise, low noise, and long service life, which can meet the choices of different customers.
● Specially optimized matching for each centrifugal fan to ensure that the user's products are leading in the industry.

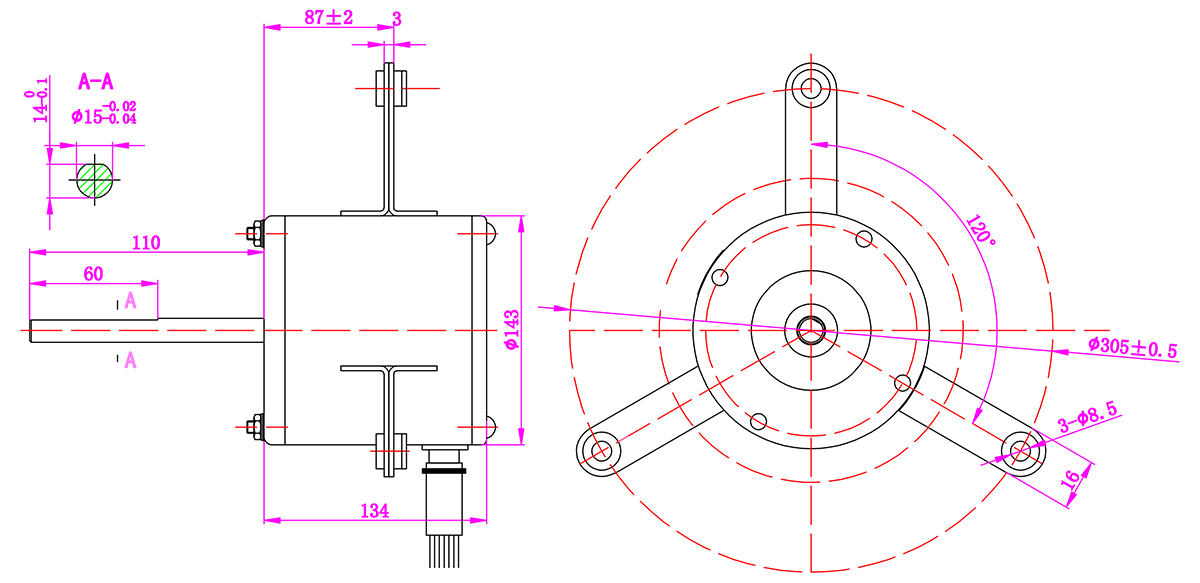

Dimensions
Main Technical Data
Serial | Motor Model | Power Supply | Output Power | Fan Model | Air Volume | Static Pressure |
1 | YDK-70W-6P | 220V50Hz | 90 | 7-5 | 200-1015m³/h | 0-125Pa |
2 | YDK-120W-4P | 220V50Hz | 120 | 320-1250 m³/h | 0-270Pa | |
3 | YDK-90W-6P | 220V50Hz | 90 | 7-7 | 490-1500 m³/h | 0-130 Pa |
4 | YDK-180W-4P | 220V50Hz | 180 | 1030-1850 m³/h | 0-265 Pa | |
5 | YDK-200W-6P | 220V50Hz | 200 | 8-8 | 880-2300 m³/h | 0-170 Pa |
6 | YDK-300W-4P | 220V50Hz | 300 | 1015-2500 m³/h | 0-380Pa | |
7 | YDK-375W-6P | 220V50Hz | 375 | 9-7 | 700-2900 m³/h | 40-230Pa |
8 | YDK-375W-4P | 220V50Hz | 375 | 670-2350 m³/h | 100-450Pa | |
9 | YDK-375W-6P | 220V50Hz | 375 | 9-9 | 665-3065 m³/h | 90-230Pa |
10 | YDK-450W-4P | 220V50Hz | 450 | 715-2875 m³/h | 240-480Pa | |
11 | YDK-375W-6P | 220V50Hz | 375 | 10-8 | 1000-3000 m³/h | 100-240Pa |
12 | YDK-550W-4P | 220V50Hz | 550 | 1500-2800 m³/h | 360-500Pa | |
13 | YDK-450W-6P | 220V50Hz | 450 | 10-10 | 540-3550 m³/h | 150-230Pa |
14 | YDK-550W-4P | 220V50Hz | 550 | 2050-3400 m³/h | 230-410Pa | |
15 | YDK-750W-6P | 220V50Hz | 750 | 12-9 | 1560-4650 m³/h | 200-360Pa |
16 | YDK-900W-4P | 220V50Hz | 900 | 1470-3150 m³/h | 470-610Pa | |
17 | YDK-750W-6P | 220V50Hz | 750 | 12-12 | 1560-4400 m³/h | 300-350Pa |
18 | YDK-900W-6P | 220V50Hz | 900 | 1560-5200 m³/h | 180-350Pa |
Notes: The above mentioned specification is representative specification. The specification can also be designed and manufactured according to customers requirement.
The products of 100-120V, 200-240V, 50/60Hz can also be supplied as requested.
