Changzhou Joinbrain Motor Co., Ltd.

Applications

This series of motors are suitable for indoor and outdoor fans of commercial split and ceiling air conditioners and similar purposes.

Features

● Motor output power 20W-200W, available according to customer requirements;

● Use imported or domestic brands of low-noise, high-quality rolling bearings;

● The casing is made of high-quality steel plate, the surface is sprayed or electrophoresed, the stator and rotor cores are made of cold-rolled silicon steel sheets, tempered and rust-free shaft nickel-phosphorus treatment;

● Specially optimized motor design, with low noise, high efficiency and other characteristics, with multi-speed regulation to meet different needs.

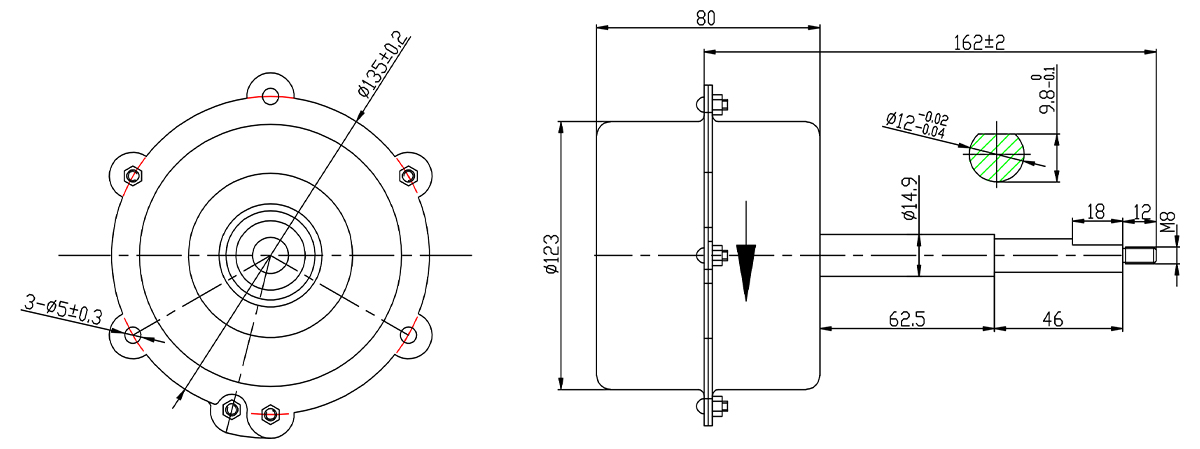

Dimensions

Main Technical Data

Notes: The above mentioned specification is representative specification. The specification can also be designed and manufactured according to customers requirement.

The products of 100-120V, 200-240V, 50/60Hz can also be supplied as requested.
