Changzhou Joinbrain Motor Co., Ltd.

Applications

This series of motors are suitable for air source heat pump water heaters, indoor and outdoor units of air conditioners, air conditioners and similar purposes

Features

● Motor output power 20W-200W, available according to customer requirements;

● Use imported or domestic brands of low noise, high-quality rolling bearings;

● The casing is made of high-quality steel plate, the surface is sprayed or electrophoresed, the stator and rotor cores are made of cold-rolled silicon steel sheets, tempered and rust-free shaft nickel-phosphorus treatment;

● Specially optimized motor design, with low noise, high efficiency and other characteristics, with multi-speed regulation to meet different needs.

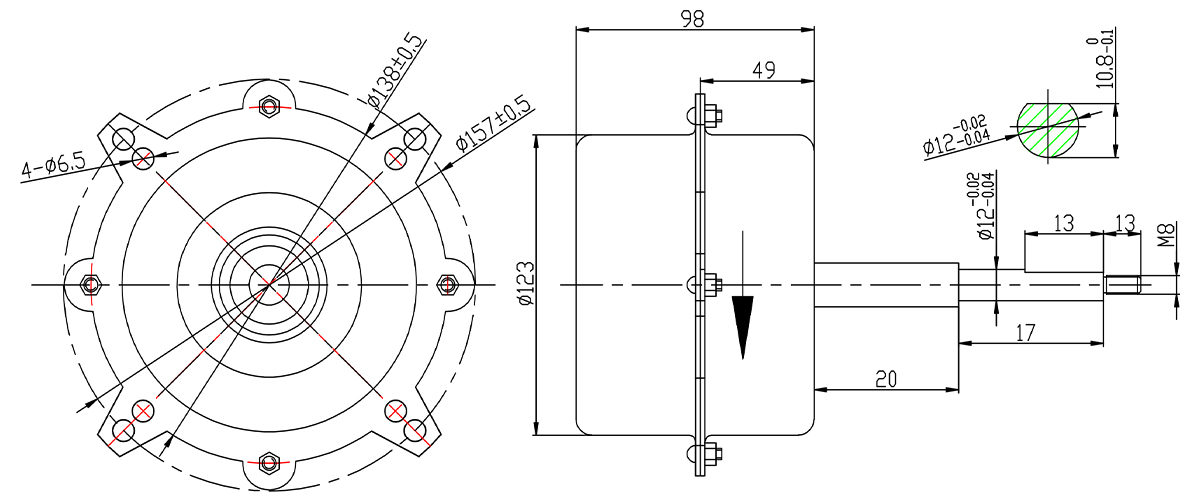

Dimensions

Main Technical Data

Notes: The above mentioned specification is representative specification. The specification can also be designed and manufactured according to customers requirement.

The products of 100-120V, 200-240V, 50/60Hz can also be supplied as requested.
