Changzhou Joinbrain Motor Co., Ltd.

Applications

Suction fan, Air source heat pump, Axial flow fan.

Features

● Power source: AC380V/50Hz, 10P, Output power: 0.75-2.2KW;

● Use NSK, TPI low noise ball bearing;

● Aluminum shell design, better heat emission condition, special technology, concentricity assurance;

● Use FOC of no hall control technology, low noise, small virbation, high efficiency, high reliability;

● Controller speed control interface: a (0-10V analog input) b (RS485 communication interface);

● Unique integrated design of motor controller facilitates installation, plug and play.

● Infinitely variable speeds, constant torque, constant rotate speed, constant air volume;

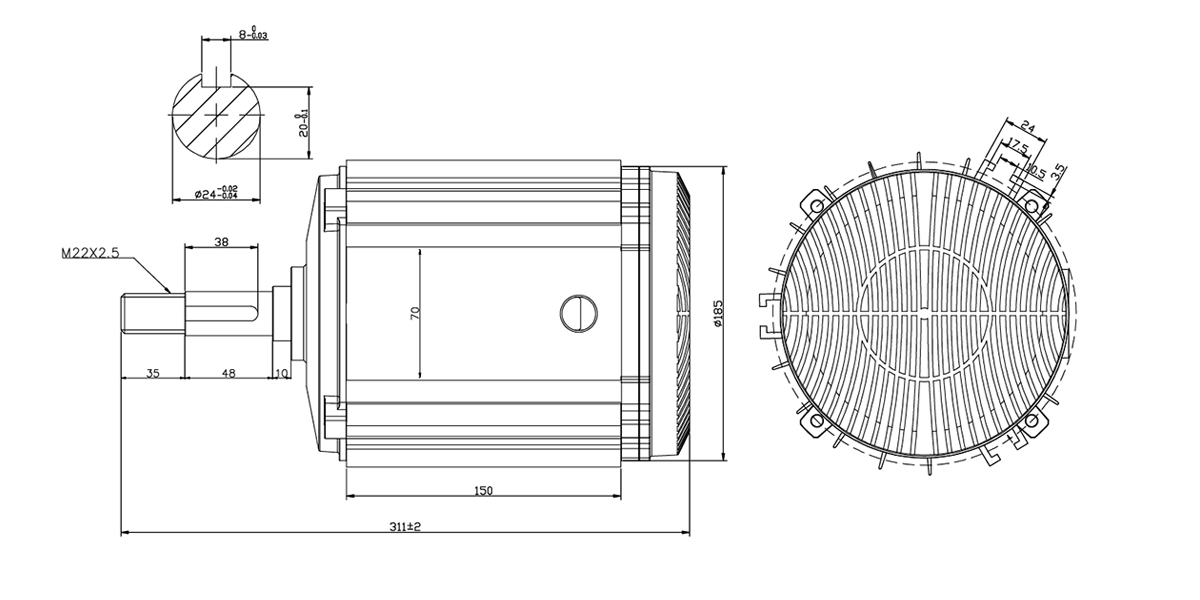

Dimensions

Connection Mode

Note: The structure size and performance data are recommended values, and can also be customized according to customer requirements.
