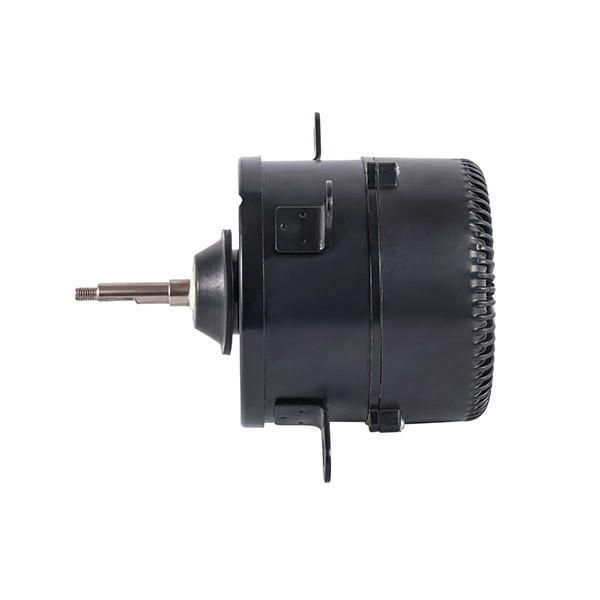

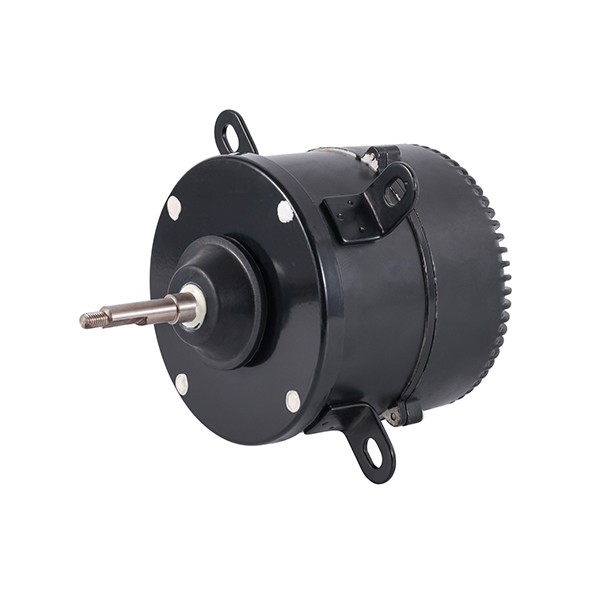

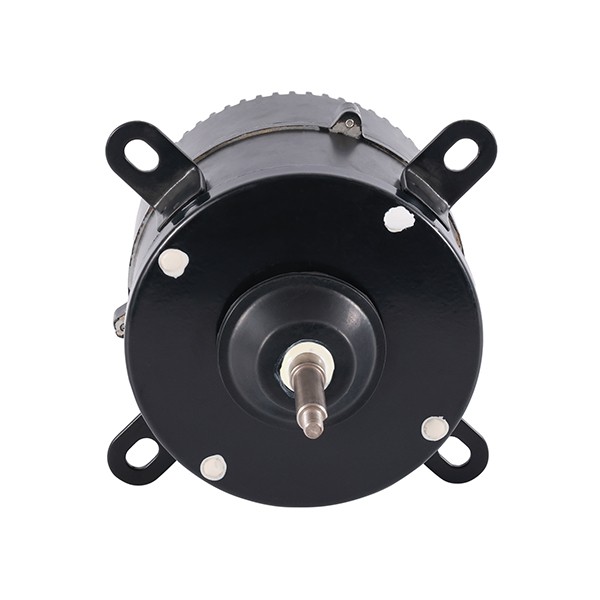

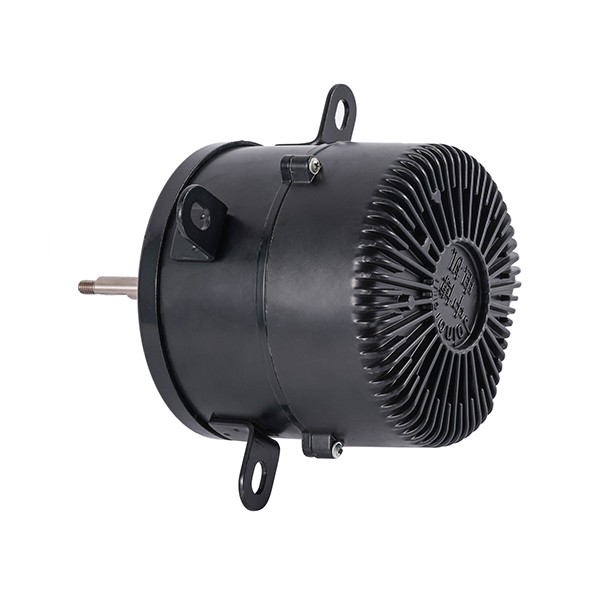

Features
● Power supply: AC220V/50Hz, 10 poles, output power 100-750W;
● Use low-noise ball bearings such as NSK and TPI;
● Roll plate structure, adjustable installation size, meet various use environments, motor protection level IP54;
● Adopt Hall-free FOC control technology, low noise and vibration, high motor efficiency and reliability;
● Controller speed control interface: a (0 ~ 10V analog input) b (RS485 communication interface);
● Unique integrated design of motor controller, easy to install and plug and play;
● Stepless speed regulation, constant torque, constant speed, constant air volume;
Dimensions
Connection Mode
Motor Model | Power Supply | Phase | Number of Poles | Output Power | Current | Reference Speed |
139BLDC-250W | AC220V | 3 | 10 | 250W | 1.05A | 1000rpm |
139BLDC-500W | AC220V | 3 | 10 | 500W | 2.1A | 1000rpm |
139BLDC-750W | AC220V | 3 | 10 | 750W | 3.3A | 950rpm |

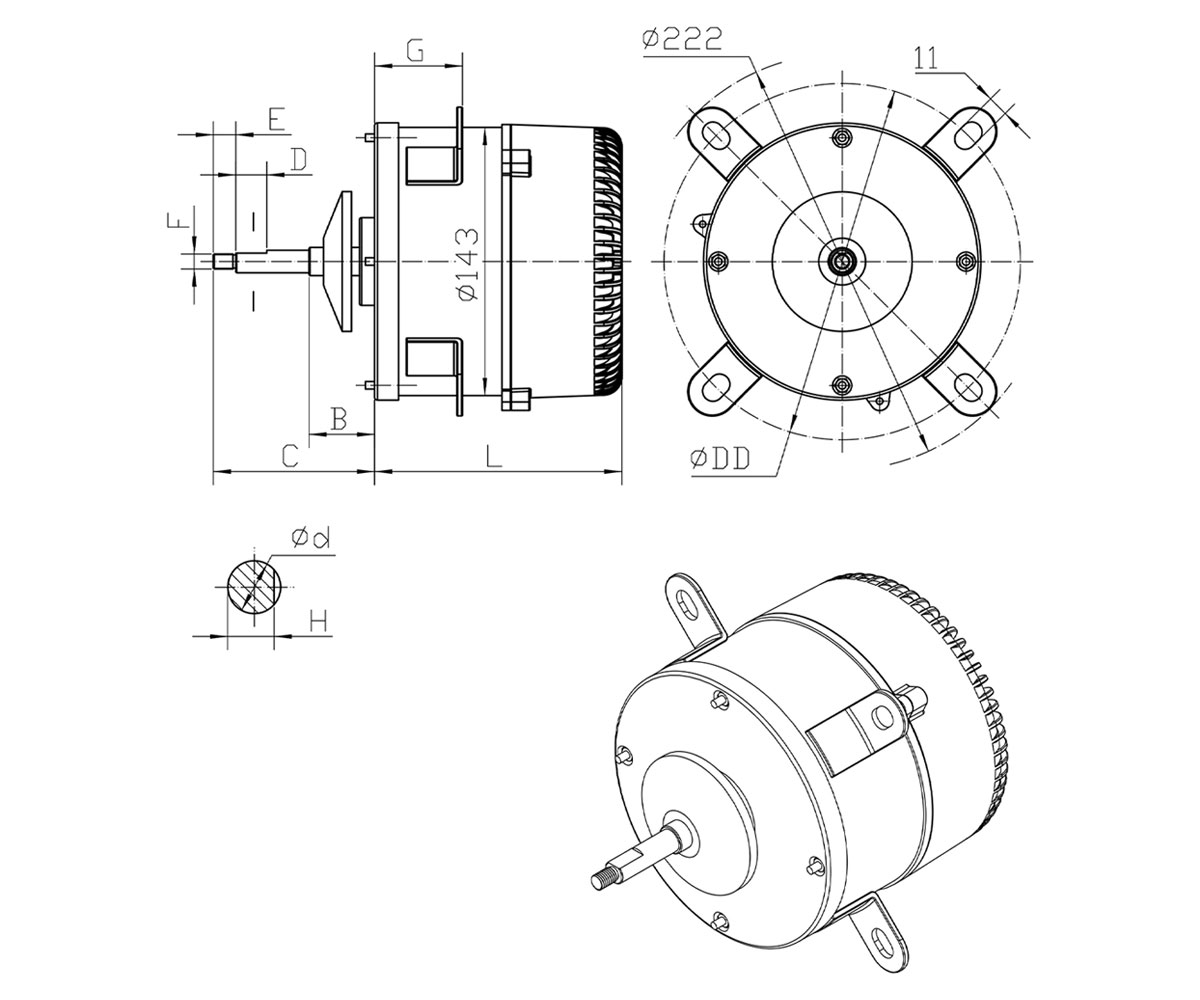

Dimensions
Type | L | B | C | D | E | F | G | DD | d | H |
139BLDC-250W | 134 | 35 | 86 | 16.5 | 12 | M8 | 39 | 190 | 12 | 10.5 |
139BLDC-500W | 149 | |||||||||
139BLDC-750W | 159 |
Power Line Apecification
Number | Colour | Specification |
1 | RED | AC220V (L) |
2 | BLK | AC220V (N) |
3 | YEL/GRN | PE |
RS485 Specification
Number | Colour | Specification |
1 | BLU | +5V |
2 | GRN | RS485 A |
3 | WHT | RS485 B |
4 | YEL | GND |
Definition of Speed Regulation Signal Line
Number | Colour | Specification |
1 | BLU | +10V |
2 | WHT | VSP |
3 | YEL | GND |
Notes: The structure size and performance data are recommended values, and can also be customized according to customer requirements.
