This series of motors are suitable for central air conditioning, heat pumps, refrigeration, evaporative cooling, animal husbandry, cooling towers, air compressors and other axial flow fan industries and similar uses.
Applications
This series of motors are suitable for central air conditioning, heat pumps, refrigeration, evaporative cooling, animal husbandry, cooling towers, air compressors and other axial flow fan industries and similar uses.
Features
● Power supply 380V/50Hz, output power 370W-1500W, can be provided according to customer requirements;
● Aluminum shell design, better heat dissipation, special processing technology, low motor noise and smoother operation;
● We use bearings from well-known domestic and foreign brands, and the stator and rotor cores are made of high-quality cold-rolled silicon steel sheets (national standard slot shape Y2-YE3). The motor has high efficiency, low temperature rise, low noise, and long service life, which can meet the choices of different customers;
● With special protection treatment, the protection level can reach IP65.

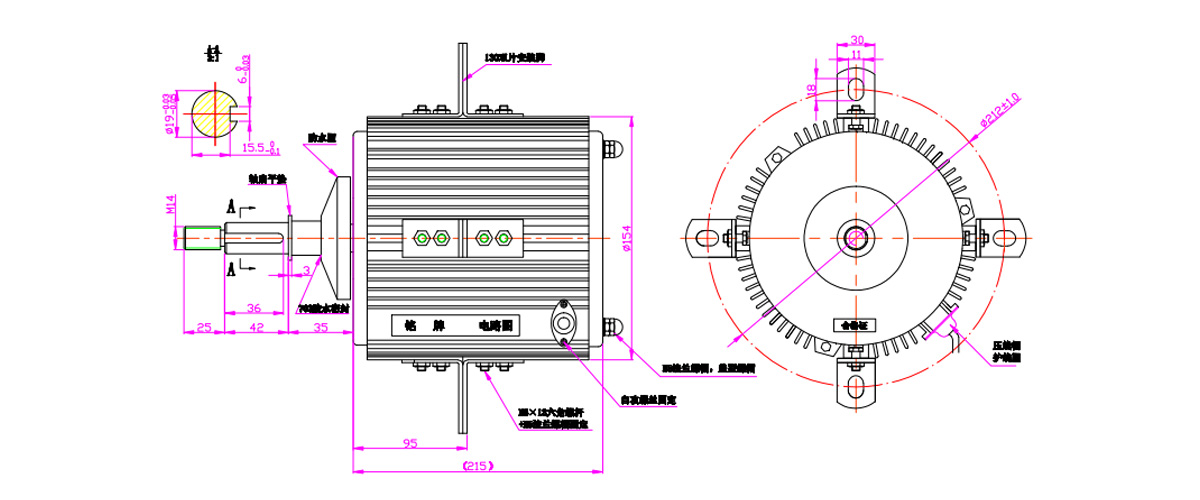

Dimensions
Main Technical Data
Model | Electrical Rating (V/Hz) | Current (A) | Reference Speed (rpm) |
YLS-1100W-4P | 380V/50Hz | 2.8 | 1430 |
YLS-1500W-4P | 380V/50Hz | 3.64 | 1430 |
YLS-750W-6P | 380V/50Hz | 2.22 | 930 |
YLS-1100W-6P | 380V/50Hz | 3.03 | 930 |
YLS-370W-8P | 380V/50Hz | 1.47 | 710 |
YLS-550W-8P | 380V/50Hz | 2.1 | 710 |
Notes: The above mentioned specification is representative specification. The specification can also be designed and manufactured according to customers requirement.
The products of 220V, 400-480V, 50/60Hz can also be supplied as requested.
