This series of motors is ideal for axial fan applications in industries such as central air conditioning, heat pumps, refrigeration, evaporative cooling, livestock ventilation, cooling towers, air compressors, and other similar uses.
Applications
This series of motors is ideal for axial fan applications in industries such as central air conditioning, heat pumps, refrigeration, evaporative cooling, livestock ventilation, cooling towers, air compressors, and other similar uses.
Features
● Operates on 380V/50Hz with an output power range of 750W to 3000W, customizable to meet specific client requirements;
● Constructed with a durable cast iron exterior and advanced processing for minimized noise and smoother operation;
● Equipped with high-quality bearings from trusted domestic and international brands, with stator and rotor cores made from premium cold-rolled silicon steel sheets (Y2-YE3 slot shape as per national standards) for high efficiency, low temperature rise, low noise, and long service life, ensuring flexible options for various customer needs;
● Special protective treatment with a protection level of up to IP65 for enhanced durability in demanding environments.

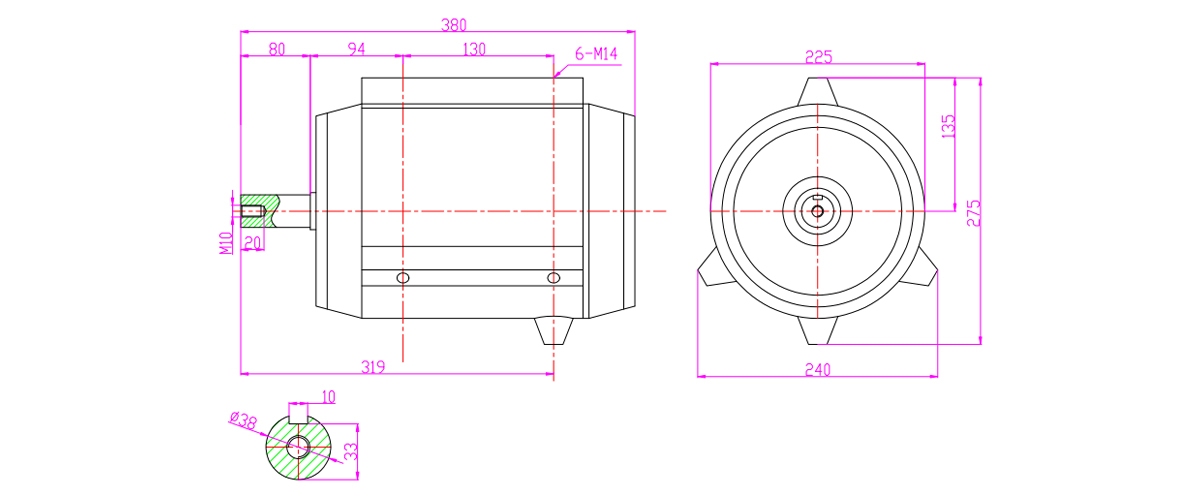

Dimensions
Main Technical Data
Model | Electrical Rating (V/Hz) | Current (A) | Reference Speed (rpm) |
YLS-5500W-4P | 380V/50Hz | 11.48 | 1440 |
YLS-7500W-4P | 380V/50Hz | 15.31 | 1440 |
YLS-3000W-6P | 380V/50Hz | 7.08 | 965 |
YLS-4000W-6P | 380V/50Hz | 9.28 | 965 |
YLS-2200W-8P | 380V/50Hz | 5.97 | 710 |
YLS-3000W-8P | 380V/50Hz | 7.63 | 710 |
Notes: The above mentioned specification is representative specification. The specification can also be designed and manufactured according to customers requirement.
The products of 220V, 400-480V, 50/60Hz can also be supplied as requested.
