Changzhou Joinbrain Motor Co., Ltd.

Applications

This series of motors are suitable for axial flow fan industries such as refrigeration, evaporative cooling, cooling towers and similar uses.

Features

● Power supply 380V/50Hz, output power 1100W-4000W, available according to customer requirements;

● Aluminum shell design, better heat dissipation, special processing technology, low motor noise, smoother operation;

● Select well-known domestic and foreign brand bearings, stator and rotor cores use (national standard slot shape Y2-YE3) high-quality cold-rolled silicon steel sheets, the motor has high efficiency, low temperature rise, low noise, long service life, can meet the choices of different customers;

● Adopt special protection treatment, the protection level can reach IP67.

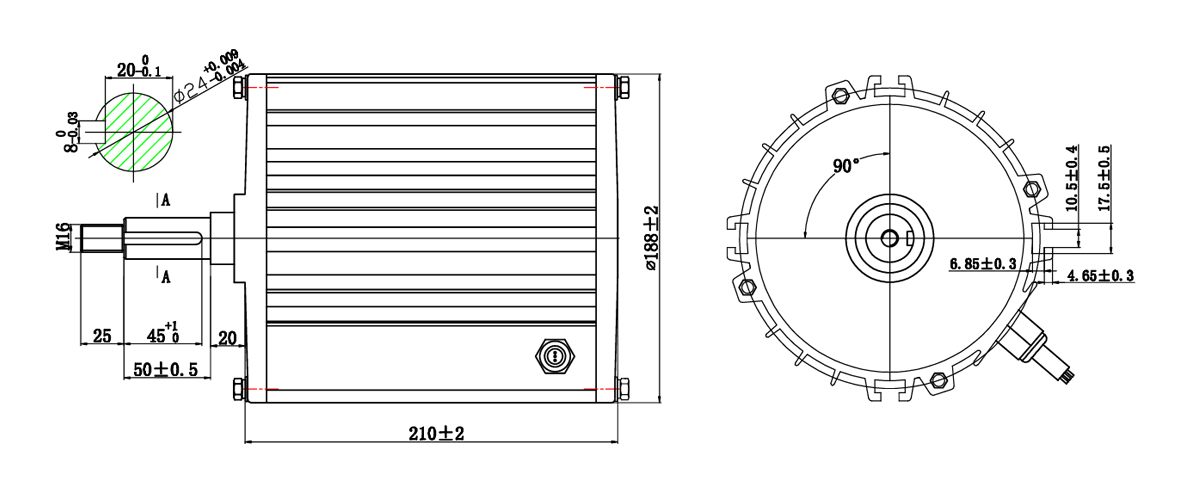

Dimensions

Main Technical Data

Notes: The above mentioned specification is representative specification. The specification can also be designed and manufactured according to customers requirement.

The products of 220V, 400-480V, 50/60Hz can also be supplied as requested.
